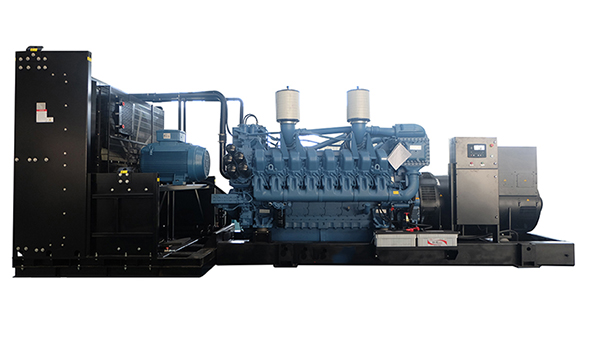

MTU Engine Generator
MTU is the top engine manufacturer from Germany and famous overseas. And it is also one of few manufacturers who is capable to produce the largest power engine in the world. MTU history can be traced back to the 18th century.
Now MTU provides the most endurable and reliable products with the most advanced technology and excellent exhaust and noise control, which is well used for continuous working condition in tough and extreme application, like mining, oilfield, power plant and military etc.
MTU has the 100% owned manufacturing base in Suzhou in China which is also the unique one in Asia besides Germany and USA base. MTU Suzhou factory produces 2000 series engine. MTU also has a joint venture with Yuchai to produce 4000 series engine.
MTU DG Set Power Range
Leading Generator Set Manufacturer
Make Good Solution for You
Application
Diesel generators are commonly used in a variety of applications, including emergency power backup, off-grid power, and industrial and commercial applications. They are also used in remote locations where access to the electrical grid is not available. The specific application scenarios are like telecommunications, industrial factories, data centers, mining, hospitals, hotels, entertainment venues, shopping malls, etc.
Prime Genset
Prime generators are used as the primary power source for industrial and commercial applications where reliable power is needed. They can also be applied for remote locations where access to the electrical grid is not available.
Standby Genset
Standby generators are used as a backup power source in the event of a power outage, and are designed to provide temporary power to a home or business until the main power source is restored.
Genset Structure Customized
Silent Type Generator Set
Silent type generator sets adopts soundproof and weatherproof canopy. Unique design of air inlet and outlet system lowers the noise of gensets obviously, which could reach 65-75dbA/7m with full loading.
MobileType Generator Set
Mobile type generator sets are mainly used for specialized operation platforms in outdoors and also for the low speed move of mechanical equipments in short distance. Easily moving makes the gensets specially suitable for outdoor construction sites, like road and railway construction and temporary electricity utilization.
Container Type Generator Set
Containerized type generator sets use advanced sound-absorbing materials, scientific and unique design in airflow and noise control. The container is with CSC certification, in line with international container security convention, ensures shipping directly as a standard container, and greatly saves the cost of transportation.
Power Plant
MG Power provides reliable and safe power solutions. We have already built up several power plants in Asia, Latin America and Africa, which are well-performing for different applications as prime, continuous or emergency power supply.
Mining
MG Power provides stable power supply for mining exploitation. The gensets are normally for prime or continuous running, equipped with intelligent control system and auto fuel feeding system, which can meet the requirement of 12-24 hours operation.
Data Center
MG Power provides excellent reliable backup power supply system for data center. Intelligent monitoring system and auto power transfer system ensure automatic start up of backup power in the case of blackout, which is the powerful guarantee for data safety and stability in the data center.
Commercial Building
MG Power provides efficient and stable emergency power for large commercial buildings like office buildings, shopping malls, hotels, banks, colleges etc. The gensets work as the standby power for the illumination, air conditioning, ventilation equipment, elevators and various loads.
Hospital
MG Power provides high reliable and environmental friendly power solution for hospital which requires instant start-up time, low noise, low emission and safety. The gensets work as emergency power, but need for a long continuous power supply capacity, and with the UPS and other equipments, to ensure the safe use of electricity.
Telecom
MG Power provides customized power solution for outdoor telecom base station. Telecom gensets require stable power supply, low interference, compact structure, and easy operation & maintenance.
FAQ of MTU DG set
- Power Capacity– It is very important to know the load requirement KVA or KW of the factory or office before buying a diesel generator. And the usage of DG set is for standby, prime or continuous working.
- Phase and Voltage – Diesel generator sets are available for single phase, 2 phase and 3 phase connections. Check the power connection in your factory or office and also know the voltage accordingly.
- Fuel Consumption – Fuel consumption is also one important thing you need to consider for daily use cost. Find out the fuel consumption of the generator per hour and per KVA (or KW) and also the fuel efficiency it provides with respect to the load.
- Structure Type – There are open frame type, silent canopy type, silent mobile type and silent containerized type according to different requirements to noise, emission, mobility or endurance.
The main configuration of a diesel generator typically includes an engine, alternator, fuel system, cooling system, exhaust system, control system, and base frame. The engine is typically a four-stroke diesel engine, famous brands like Cummins, Perkins, MTU, Doosan and Yuchai. And the alternator is typically a brushless, self-excited type, famous brands like Stamford, Leroy Somer, and Mecc Alte. The fuel system includes a fuel tank, fuel pump, fuel filter, and fuel lines. The cooling system includes a radiator, fan, and coolant. The exhaust system includes a muffler and exhaust pipe. The control system includes a control panel, famous brands like Deepsea, ComAp and Smartgen, and circuit breakers ABB, Schneider and Delixi. The base frame is typically made of steel and provides a stable platform for the generator.
Diesel generators can be used for different applications such as providing backup power for homes and businesses like real estate, shopping malls and data centers, providing emergency power for hospitals and other critical facilities, and providing power for remote locations like mining projects, telecom stations and construction sites. Diesel generators are also used in the oil and gas industry, marine applications, and for powering agricultural equipment.
The MTU engine series generators provide the most endurable and reliable quality with the most advanced technology and excellent exhaust and noise control, which is well used for continuous working condition in tough and extreme application, like mining, oilfield, power plant and military etc.
750kVA-3250kVA 50Hz and 815kVA-3750kVA 60Hz. MTU engines are mixed with China and Germany made.
MTU Series Genset Specification
| MG GENSET MODEL | POWER | DIESEL ENGINE | STRUCTURE TYPE | ||||
| STANDBY KVA | PRIME KVA | MODEL | OPEN | SILENT | TRAILER | CONTAINERIZED | |
| MG-M825 | 825 | 750 | 12V2000G65 | ● | ○ | ○ | ● |
| MG-M880 | 880 | 800 | 12V2000G65 | ● | ○ | ○ | ● |
| MG-M1000 | 1000 | 910 | 16V2000G25 | ● | ○ | ○ | ● |
| MG-M1100 | 1100 | 1000 | 16V2000G65 | ● | ○ | ○ | ● |
| MG-M1250 | 1250 | 1135 | 18V2000G65 | ● | ○ | ○ | ● |
| MG-M1375 | NA | 1250 | 18V2000G26F | ● | ○ | ○ | ● |
| 1375 | NA | 18V2000G76F | ● | ○ | ○ | ● | |
| MG-M1500 | NA | 1400 | 12V4000G14RF | ● | ○ | ○ | ● |
| MG-M1660 | 1660 | 1550 | 12V4000G14F | ● | ○ | ○ | ● |
| MG-M1800 | 1800 | 1640 | 12V4000G14F | ● | ○ | ○ | ● |
| MG-M2000 | 2000 | 1813 | 12V4000G24F | ● | ○ | ○ | ● |
| MG-M2250 | 2250 | 2050 | 16V4000G14F | ● | ○ | ○ | ● |
| MG-M2500 | 2500 | 2250 | 16V4000G24F | ● | ○ | ○ | ● |
| MG-M2750 | 2750 | 2500 | 20V4000G14F | ● | ○ | ○ | ● |
| MG-M3000 | 3000 | 2750 | 20V4000G24F | ● | ○ | ○ | ● |
| MG-M3250 | 3250 | 3000 | 20V4000G34F | ● | ○ | ○ | ● |
| MG-MY1660 | 1660 | 1550 | 12V4000G23F | ● | ○ | ○ | ● |
| MG-MY1800 | 1800 | 1640 | 12V4000G23F | ● | ○ | ○ | ● |
| MG-MY2000 | 2000 | 1812.5 | 12V4000G63F | ● | ○ | ○ | ● |
| MG-MY2250 | 2250 | 2050 | 16V4000G23F | ● | ○ | ○ | ● |
| MG-MY2500 | 2500 | 2275 | 16V4000G63F | ● | ○ | ○ | ● |
| MG-MY2750 | 2750 | 2500 | 20V4000G23F | ● | ○ | ○ | ● |
| MG-MY3000 | 3000 | 2750 | 20V4000G63F | ● | ○ | ○ | ● |
| MG-MY3250 | 3250 | 3000 | 20V4000G63LF | ● | ○ | ○ | ● |
| MG GENSET MODEL | POWER | DIESEL ENGINE | STRUCTURE TYPE | ||||
| STANDBY KVA | PRIME KVA | MODEL | OPEN | SILENT | TRAILER | CONTAINERIZED | |
| MG-M896-6 | 896 | 815 | 12V2000G45 | ● | ○ | ○ | ● |
| MG-M1000-6 | 1000 | 910 | 12V2000G85 | ● | ○ | ○ | ● |
| MG-M1137-6 | 1137 | 1025 | 16V2000G45 | ● | ○ | ○ | ● |
| MG-M1265-6 | 1265 | 1150 | 16V2000G85 | ● | ○ | ○ | ● |
| MG-M1450-6 | 1450 | 1338 | 18V2000G85 | ● | ○ | ○ | ● |
| MG-M1500-6 | 1500 | 1362 | 18V2000G85 | ● | ○ | ○ | ● |
| MG-M1562-6 | 1562 | NA | 18V2000G76S | ● | ○ | ○ | ● |
| MG-M1875-6 | 1875 | 1700 | 12V4000G14S | ● | ○ | ○ | ● |
| MG-M2200-6 | 2200 | 2000 | 12V4000G24S | ● | ○ | ○ | ● |
| MG-M2500-6 | 2500 | 2275 | 16V4000G14S | ● | ○ | ○ | ● |
| MG-M2750-6 | 2750 | 2500 | 16V4000G24S | ● | ○ | ○ | ● |
| MG-M3125-6 | 3125 | 2813 | 20V4000G14S | ● | ○ | ○ | ● |
| MG-M3438-6 | 3438 | 3125 | 20V4000G24S | ● | ○ | ○ | ● |
| MG-M3750-6 | 3750 | 3450 | 20V4000G44S | ● | ○ | ○ | ● |
| MG-MY1875-6 | 1875 | 1700 | 12V4000G43S | ● | ○ | ○ | ● |
| MG-MY2200-6 | 2200 | 2000 | 12V4000G83S | ● | ○ | ○ | ● |
| MG-MY2500-6 | 2500 | 2275 | 16V4000G43S | ● | ○ | ○ | ● |
| MG-MY2750-6 | 2750 | 2500 | 16V4000G83S | ● | ○ | ○ | ● |
| MG-MY3125-6 | 3125 | 2813 | 20V4000G43S | ● | ○ | ○ | ● |
| MG-MY3438-6 | 3438 | 3125 | 20V4000G83S | ● | ○ | ○ | ● |
| MG-MY3750-6 | 3750 | 3450 | 20V4000G83LS | ● | ○ | ○ | ● |
